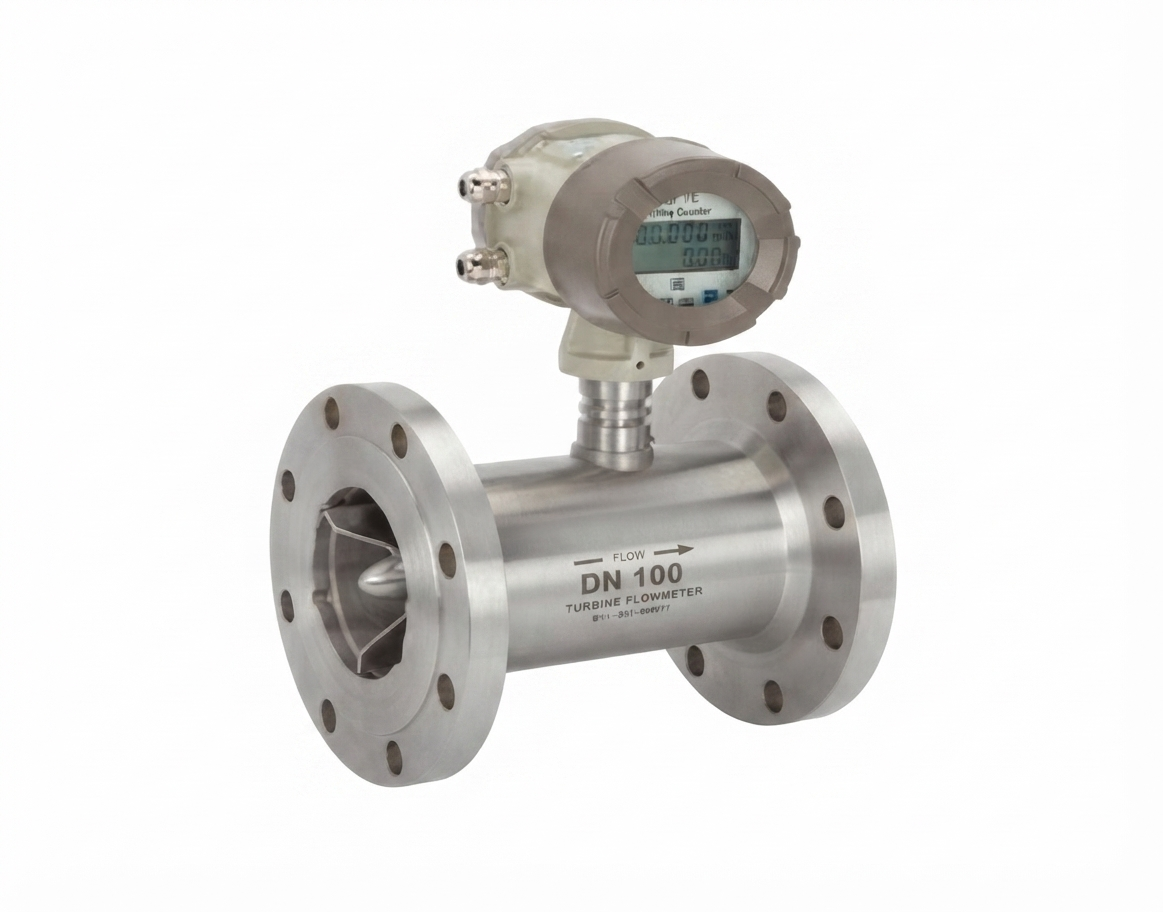

TURBINE FLOW METER

Turbine Flow Meter is a precision instrument designed for measuring the flow rate of clean, low-viscosity liquids. It offers excellent accuracy, repeatability, and long-term performance for industrial applications.

Key Features
  • High Accuracy
  • Excellent Repeatability
  • Wide Flow Measurement Range
  • Compact & Rugged Construction
  • Low Pressure Loss
  • Easy Installation & Maintenance
Applications
  • Water Treatment Plants
  • Chemical Processing
  • Food & Beverage Industry
  • Pharmaceutical Industry
  • Oil & Gas Industry
  • Industrial Process Control

Categories

TURBINE FLOW METER

Flow Meter Specifications

Application Range (A) Without Impurity
(B) Low Viscosity
Measured Value
Primary Measured Value Flow Rate
Secondary Measured Value Volume Flow
Features
Construction The measurement system consists of a flow sensor and a signal converter.
Compact Converter 1) Pulse Output without Local Display

2) 4–20mA Output without Local Display

3) Type: Local Display, Lithium Battery Power, No Output

Local Display: 24V DC Power, 4–20mA Output

Optional Functions:
(1) Backup Power Supply: Lithium Battery
(2) Modbus, RS485
(3) Pulse Output
Connection Thread: DN4–DN50
Flange: DN15–DN200 (DIN, ANSI, JIS)

Quick Specifications

Type Turbine Flow Meter
Accuracy ±0.5%
Flow Range 0.3 ~ 10 m/s
Temperature Up to 180°C
Pressure 10 kg/cm²
Protection IP65 / IP67
