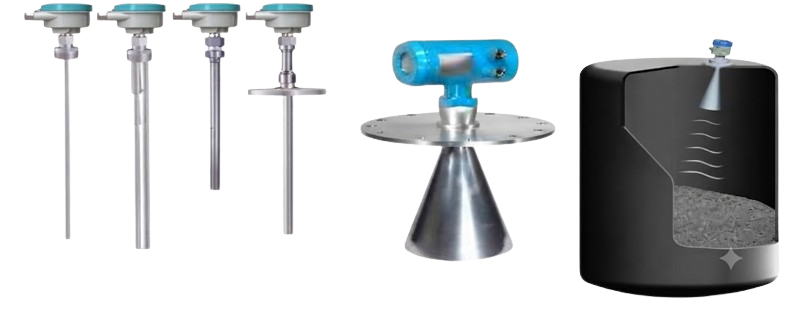

Guide Wave Radar Level Meter is a continuous level measurement instrument using radar technology. It provides accurate and reliable measurement for liquids, solids and powders.
| Type |
ILUX-RLN-1002 ILUX-RLN-1003 ILUX-RLN-1004 |
|---|---|
| Application |
ILUX-RLN-1002: Corrosive liquid, slurry, solid Such as: Liquid water storage tank Acid-base storage tank Slurry storage tank Solid particle Small tank ILUX-RLN-1003: Corrosive liquid, slurry, solid Such as: Liquid water storage tank Acid-base storage tank Slurry storage tank Solid particle Small tank ILUX-RLN-1004: Liquid, slurry, solid Such as: Crude oil and light oil storage tank Raw coal, powdered coal position Volatile liquid tank Coke material level Slurry storage tank Solid particle |
| Max. Range |
ILUX-RLN-1002: 20m ILUX-RLN-1003: 30m ILUX-RLN-1004: 36m |
| Connection |
Thread Thread / Flange Thread / Flange |
| Operating Temperature |
-40~120℃ -40~150℃ -40~250℃ |
| Operating Pressure |
1~3bar 1~20bar 1~40bar |
| Repeatability | ±2mm |
| Accuracy | ≤0.1% |
| Frequency | 6.8GHz |
| IP Grade | IP67 |
| Output | 4~20mA |
| Power | 24VDC |
