The conductivity industrial series of electrodes are specially used for the measurement of conductivity value of pure water, ultrapure water, water treatment, etc. It is especially suitable for conductivity measurement in thermal power plants and water treatment industries.

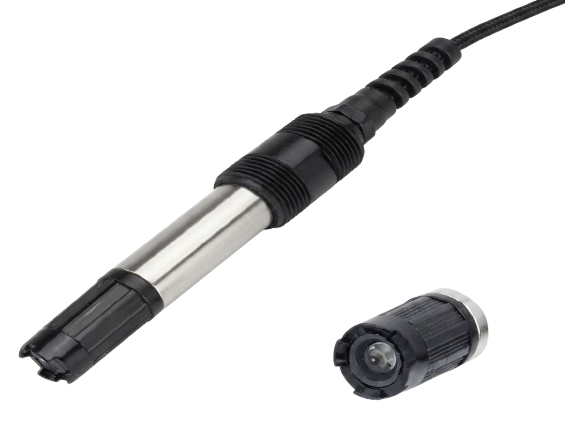

| Dissolved Oxygen Electrode | |
|---|---|
| Material | Stainless Steel |
| Membrane | Fluorine Plastic, Silicone, Stainless Steel Wire Mesh Composite Membrane |
| Cathode | Platinum Wire |
| Anode | Silver |
| Temperature Sensor | PT1000 |
| Response Current in Air | 60 nA |
| Response Current in Nitrogen Atmosphere | Less than 1% of the response current in air |
| Response Time | About 60 Seconds (Up to 95% Response) |
| Response Stability | Current Drift Less Than 3% Per Week at Constant Oxygen Partial Pressure and Temperature |
| Liquid Mixing Flow Response | 3% or Less |
| Response Temperature Coefficient | 3% (At Room Temperature) |
| Insertion Diameter | 12 mm, 19 mm, 25 mm (Optional) |
| Insertion Part Length | 80 mm, 150 mm, 200 mm, 250 mm, 300 mm (Optional) |
