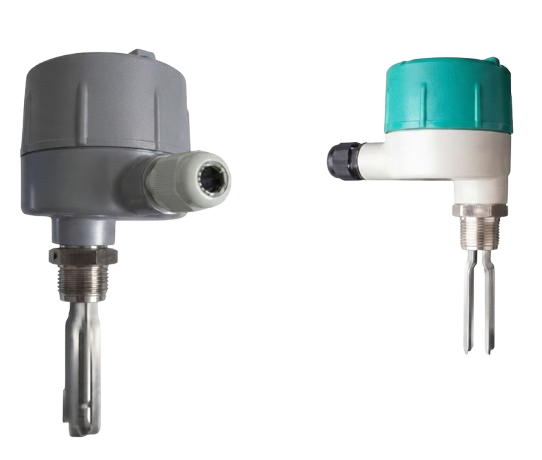

FORK LEVEL SWITCH

Fork Level Switch is a vibration fork type level detector designed for reliable point level detection of liquids, powders and solid particles. It provides stable performance with relay, voltage and current outputs for industrial process control.

Key Features
  • Vibrating Fork Detection Principle
  • Suitable for Liquid, Powder & Solid
  • SS304 Fork Material
  • Relay / Voltage / Current Output
  • Low Power Consumption
  • Easy Installation
Applications
  • Liquid Storage Tanks
  • Powder Silos
  • Solid Material Bins
  • Chemical Industry
  • Food Processing
  • Industrial Automation

Categories

Fork Level Switch

Fork Level Technical Data

Medium Temperature -20℃ ~ 220℃
Environmental Temperature -20℃ ~ 80℃
Environment Humidity ≤95%RH
Medium Liquid, Powder or Solid Particle
Medium Density Solid ≥0.16 g/cm³
Liquid ≥0.7 g/cm³
Solid Particle Diameter ≤10mm
Liquid Viscosity ≤1000mm²/s
Pressure Range ≤1MPa
Fork Material 1Cr18Ni9Ti (SS304)
Process Connection 1" NPT / G3/4
Power Supply DC24V / AC220V 50Hz
Relay Capacity 5A 220V AC
DC Voltage Output 0 ~ 5V
DC Current Output 0 ~ 10mA
Power Consumption ≤2W
Fork Vibratory Frequency 300 ± 50Hz

Quick Specifications

Type Fork Level Switch
Medium Liquid, Powder, Solid Particle
Medium Temperature -20℃ ~ 220℃
Environment Temperature -20℃ ~ 80℃
Pressure Range ≤1MPa
Process Connection 1" NPT / G3/4
Power Supply DC24V / AC220V 50Hz
Output Relay / 0~5V / 0~10mA
Fork Material 1Cr18Ni9Ti (SS304)
Power Consumption ≤2W
Fork Frequency 300 ± 50Hz
