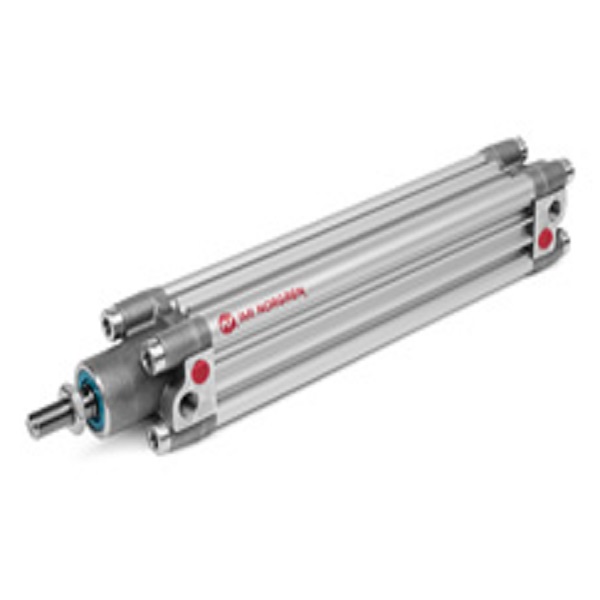

PRA/802040
ITEM: PRA/802040/M/50
- Conforms to ISO 15552 (VDMA 24562 and NFE 49-003-1)
- High performance, stability and reliability
- Polyurethane seals ensure efficient low friction operation and long life
- Switches can be mounted flush with the profile barrel
| Medium: | Compressed air, filtered and lubricated or non-lubricated |
|---|---|
| Port size: | G1/4 |
| Operation: | Double acting |
| Operating pressure: | 1 … 12 bar |
| Operating temperature: | -20 … 80 °C |
| Cylinder diameter: | 40 mm |
- Description
- Reviews (0)
Description
Description
Technical Details
| ATTRIBUTE | |
|---|---|
| Medium: | Compressed air, filtered and lubricated or non-lubricated |
| Port size: | G1/4 |
| Operation: | Double acting |
| Operating pressure: | 1 … 12 bar |
| Operating temperature: | -20 … 80 °C |
| Cylinder diameter: | 40 mm |
| Piston rod diameter: | 16 mm |
| Stroke length: | 50 mm |
| Piston rod thread: | M12 x 1.25 |
| Standard: | ISO 15552 |
| Theoretical force: | 754 N |
| Material – Piston head seals: | PUR |
| Material – Piston rod: | Stainless steel (Martensitic) |
| Series: | ISOLine |
